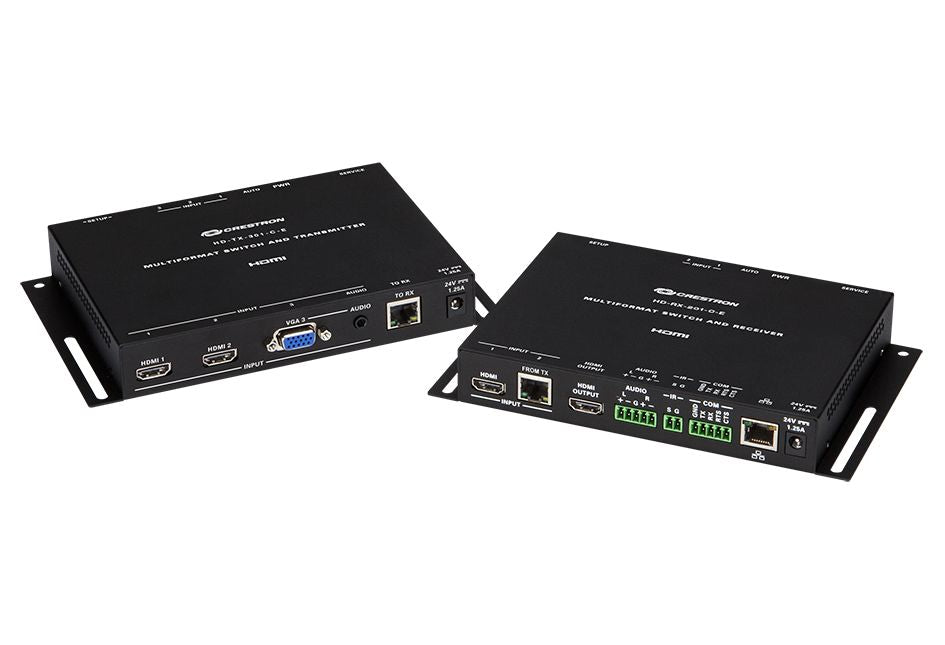

Provides a simple and cost-effective high-definition AV presentation solution for classrooms and meeting spaces. It is composed of a DM Lite surface mount transmitter (HD-TX-301-C-E) and receiver (HD-RX-201-C-E), which connect together over a single CATx cable at up to 230 ft (70 m). Provides auto-switching HDMI® and VGA inputs at the transmitter, and one additional HDMI input at the receiver. Built-in scaling ensures a reliable, high-quality video image. Fully-automatic operation and web browser setup eliminate the need for a control panel, control system, or programming.
Specifications
| Video | |||||||||||||||||||||||||||||||
| Switcher | 3x1+1 (3 inputs at transmitter + 1 input at receiver) manual or auto-switching, audio-follow-video, Crestron QuickSwitch HD technology | ||||||||||||||||||||||||||||||
| Scaler | HD video scaler and deinterlacer, noise reduction, 3:2/2:2 pull-down detection and recovery, aspect ratio selection, VGA phase/clock & H/V position adjustments, picture and RGB color adjustments | ||||||||||||||||||||||||||||||
| Input Signal Types | HDMI w/Deep Color (DVI & Dual-Mode DisplayPort compatible [3]); VGA/RGB (RGBHV, RGBS, RGsB); component (YPbPr) [4] | ||||||||||||||||||||||||||||||
| Output Signal Types | HDMI w/Deep Color (DVI compatible [6]) | ||||||||||||||||||||||||||||||
| Copy Protection | HDCP 1.4 | ||||||||||||||||||||||||||||||
Maximum Input Resolutions
|
|||||||||||||||||||||||||||||||
| Scaler Output Resolutions, HDMI, Progressive | Auto, 640x480@60Hz, 720x480@60Hz (480p), 720x576@50Hz (576p), 800x600@60Hz, 840x480@60Hz, 1024x768@60Hz, 1280x720@50/60Hz (720p50/60), 1280x768@60Hz [12], 1280x800@60Hz [12], 1280x960@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1366x768@60Hz [12], 1400x1050@60Hz [12], 1440x900@60Hz [12], 1600x900@60Hz [13], 1600x1200@60Hz, 1680x1050@60Hz [12], 1920x1080@30/50/60Hz (1080p30/50/60), 1920x1200@60Hz [13] | ||||||||||||||||||||||||||||||
| Scaler Output Resolutions, HDMI, Interlaced | Auto, 480i, 576i, 1080i25, 1080i30 | ||||||||||||||||||||||||||||||
| Audio | |||||||||||||||||||||||||||||||
| Input Signal Types | HDMI (Dual-Mode DisplayPort compatible [3]), analog stereo | ||||||||||||||||||||||||||||||
| Output Signal Types | HDMI, analog stereo [7] | ||||||||||||||||||||||||||||||
| Digital Formats | Dolby Digital, Dolby Digital EX, DTS, DTS ES, DTS 96/24, LPCM up to 8 channels | ||||||||||||||||||||||||||||||
| Analog Formats | Stereo 2-channel [7] | ||||||||||||||||||||||||||||||
| Analog-To-Digital Conversion | 24-bit 48 kHz | ||||||||||||||||||||||||||||||
| Digital-To-Analog Conversion | 24-bit 48 kHz | ||||||||||||||||||||||||||||||
| Analog Output Volume | -80 to +20 dB Level adjustment range, plus Mute | ||||||||||||||||||||||||||||||
| Analog Output Lip-Sync Delay | 0 to 150 ms (maximum delay time is reduced for input signals with sampling rates over 48 kHz) | ||||||||||||||||||||||||||||||
| Analog Performance | Frequency Response: 20 Hz to 20 kHz ±0.5 dB; S/N Ratio: >93 dB, 20 Hz to 20 kHz A-weighted; THD+N: <0.005% @ 1 kHz; Stereo Separation: >80 dB |
||||||||||||||||||||||||||||||
| Communications | |||||||||||||||||||||||||||||||
| Ethernet | 10/100 Mbps, auto-switching, auto-negotiating, auto-discovery, full/half duplex, DHCP, web browser setup and control, Crestron control system integration | ||||||||||||||||||||||||||||||
| USB | Supports a TT-100 series cable caddy at the transmitter [2] | ||||||||||||||||||||||||||||||
| RS-232 | 2-way device control and monitoring up to 115.2k baud with hardware and software handshaking | ||||||||||||||||||||||||||||||
| IR | 1-way device control via infrared up to 60 kHz | ||||||||||||||||||||||||||||||
| HDMI | HDCP 1.4, EDID, CEC | ||||||||||||||||||||||||||||||
| DM Lite Link | Proprietary link for connection between TX & RX only | ||||||||||||||||||||||||||||||
| NOTE: Supports management of HDCP and EDID; supports management of CEC between the connected HDMI devices and a control system | |||||||||||||||||||||||||||||||

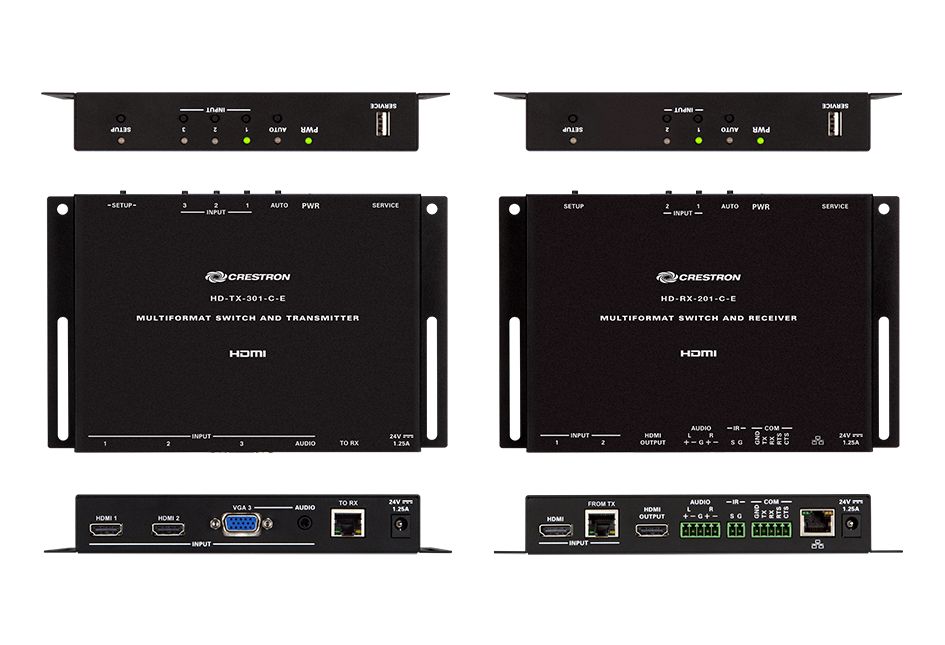

| Connectors at Transmitter (HD-TX-301-C-E) | |||||||||||||||||||||||||||||||
| HDMI 1 – 2 INPUT | (2) HDMI Type A connectors, female; HDMI digital video/audio inputs (DVI & Dual-Mode DisplayPort compatible [3]) |
||||||||||||||||||||||||||||||
| VGA 3 INPUT | (1) HD15 connector, female; RGB (VGA) or component video input [4]; Formats: RGBHV, RGBS, RGsB, YPbPr |
||||||||||||||||||||||||||||||
| AUDIO INPUT | (1) 3.5 mm TRS mini phone jack; Unbalanced stereo line-level audio input [5]; Maximum Input Level: 2 Vrms; Input Impedance: 44k Ohms |
||||||||||||||||||||||||||||||
| TO RX | (1) 8-pin RJ45 connector, female, shielded; Link port for connection to HD-RX-201-C-E receiver [1] |
||||||||||||||||||||||||||||||
| 24VDC 1.25A | (1) 2.1 x 5.5 mm DC power connector; 24 Volt DC power input; PW-2412WU power pack included [13] |
||||||||||||||||||||||||||||||
| SERVICE | (1) USB Type A connector, female; USB host port for connection of a Crestron TT-100 series device (Crestron Connect It) [2] |
||||||||||||||||||||||||||||||
| Connectors at Receiver (HD-RX-201-C-E) | |||||||||||||||||||||||||||||||
| HDMI, INPUT 1 | (1) HDMI Type A connector, female; HDMI digital video/audio input (DVI & Dual-Mode DisplayPort compatible [3]) |
||||||||||||||||||||||||||||||
| FROM TX, INPUT 2 | (1) 8-pin RJ45 connector, female, shielded; Link port for connection to HD-TX-301-C-E transmitter [1]; Maximum cable length: 230 ft (70 m) |
||||||||||||||||||||||||||||||
| HDMI OUTPUT | (1) HDMI Type A connector, female; HDMI digital video/audio output (DVI compatible [6]) |
||||||||||||||||||||||||||||||
| AUDIO L/R | (1) 5-pin 3.5 mm detachable terminal block; Balanced/unbalanced stereo line-level audio output [7]; Maximum Output Level: 4 Vrms balanced, 2 Vrms unbalanced; Output Impedance: 200 Ohms balanced, 100 Ohms unbalanced |
||||||||||||||||||||||||||||||
| IR | (1) 2-pin 3.5 mm detachable terminal block; IR output control port; Supports IR up to 60 kHz; IRP2 emitter sold separately; Note: Provides power on/off control of the display device without a control system, or fully programmable control of any device with a control system |
||||||||||||||||||||||||||||||
| COM | (1) 5-pin 3.5 mm detachable terminal block; Bidirectional RS-232 port; Supports RS-232 up to 115.2k baud with hardware and software handshaking; Note: Provides power on/off control of the display device without a control system, or fully programmable control of any device with a control system |
||||||||||||||||||||||||||||||
| LAN | (1) 8-pin RJ45 connector, female; 10Base-T/100Base-TX Ethernet port |
||||||||||||||||||||||||||||||
| 24VDC 1.25A | (1) 2.1 x 5.5 mm DC power connector; 24 Volt DC power input; PW-2412WU power pack included [13] |
||||||||||||||||||||||||||||||
| SERVICE | (1) USB Type A connector, female; For factory use only |
||||||||||||||||||||||||||||||
| Controls & Indicators at Transmitter (HD-TX-301-C-E) | |||||||||||||||||||||||||||||||
| TO RX | (2) LEDs (on RJ45 connector), green LED indicates DM Lite link status, amber LED indicates a valid video signal | ||||||||||||||||||||||||||||||
| PWR | (1) Bi-color green/amber LED, indicates operating power is supplied from the power pack via the 24VDC input or from the RX via the DM Lite link, turns amber while booting and green when operating | ||||||||||||||||||||||||||||||
| AUTO | (1) Pushbutton to enable/disable auto-switching mode, and (1) green LED to indicate auto-switching mode is enabled | ||||||||||||||||||||||||||||||
| INPUT 1 – 3 | (3) Pushbuttons for manual input selection, and (3) bi-color green/amber LEDs to indicate the current active input and signal presence at each corresponding input | ||||||||||||||||||||||||||||||
| SETUP | (1) Red LED and (1) recessed pushbutton for Ethernet setup | ||||||||||||||||||||||||||||||
| Controls & Indicators at Receiver (HD-RX-201-C-E) | |||||||||||||||||||||||||||||||
| FROM TX, INPUT 2 | (2) LEDs (on RJ45 connector), green LED indicates DM Lite link status, amber LED indicates a valid video signal | ||||||||||||||||||||||||||||||
| LAN | (2) LEDs (on RJ45 connector), green LED indicates Ethernet link status, amber LED indicates Ethernet activity | ||||||||||||||||||||||||||||||
| PWR | (1) Bi-color green/amber LED, indicates operating power is supplied from the power pack via the 24VDC input or from the TX via the DM Lite link, turns amber while booting and green when operating | ||||||||||||||||||||||||||||||
| AUTO | (1) Pushbutton to enable/disable auto-switching mode, and (1) green LED to indicate auto-switching mode is enabled | ||||||||||||||||||||||||||||||
| INPUT 1 – 2 | (2) Pushbuttons for manual input selection, and (2) bi-color green/amber LEDs to indicate the current active input and signal presence at each corresponding input | ||||||||||||||||||||||||||||||
| SETUP | (1) Red LED and (1) recessed pushbutton for Ethernet setup | ||||||||||||||||||||||||||||||
| Power | |||||||||||||||||||||||||||||||
| Power Pack (included) |
Input: 0.8 Amps (maximum) @ 100-240 Volts AC, 50/60 Hz; Output: 1.25 Amps @ 24 Volts DC; Model: PW-2412WU NOTE: The transmitter and receiver are powered together using a single power pack. The power pack may connect to either the transmitter or receiver, not both. |
||||||||||||||||||||||||||||||
| Power Consumption | 13 Watts typical | ||||||||||||||||||||||||||||||
| Environmental | |||||||||||||||||||||||||||||||
| Temperature | 32° to 104° F (0° to 40° C) | ||||||||||||||||||||||||||||||
| Humidity | 20% to 90% RH (non-condensing) | ||||||||||||||||||||||||||||||
| Heat Dissipation | 44.3 BTU/hr | ||||||||||||||||||||||||||||||
| Construction | |||||||||||||||||||||||||||||||
| Applicable to both the transmitter and receiver: | |||||||||||||||||||||||||||||||
| Chassis | Metal, black finish, with (2) integral mounting flanges, vented sides | ||||||||||||||||||||||||||||||
| Mounting | Freestanding, surface mount, or attach to a single rack rail | ||||||||||||||||||||||||||||||
| Dimensions | |||||||||||||||||||||||||||||||
| Transmitter (HD-TX-301-C-E) |
Height: 1.11 in (28 mm); Width: 7.70 in (196 mm); Depth: 5.12 in (130 mm) |
||||||||||||||||||||||||||||||
| Receiver (HD-RX-201-C-E) |
Height: 1.11 in (28 mm); Width: 7.70 in (196 mm); Depth: 4.94 in (126 mm) |
||||||||||||||||||||||||||||||
| Weight | |||||||||||||||||||||||||||||||
| Transmitter (HD-TX-301-C-E) |
20.0 oz (567 g) | ||||||||||||||||||||||||||||||
| Receiver (HD-RX-201-C-E) |
20.82 oz (590 g) | ||||||||||||||||||||||||||||||
