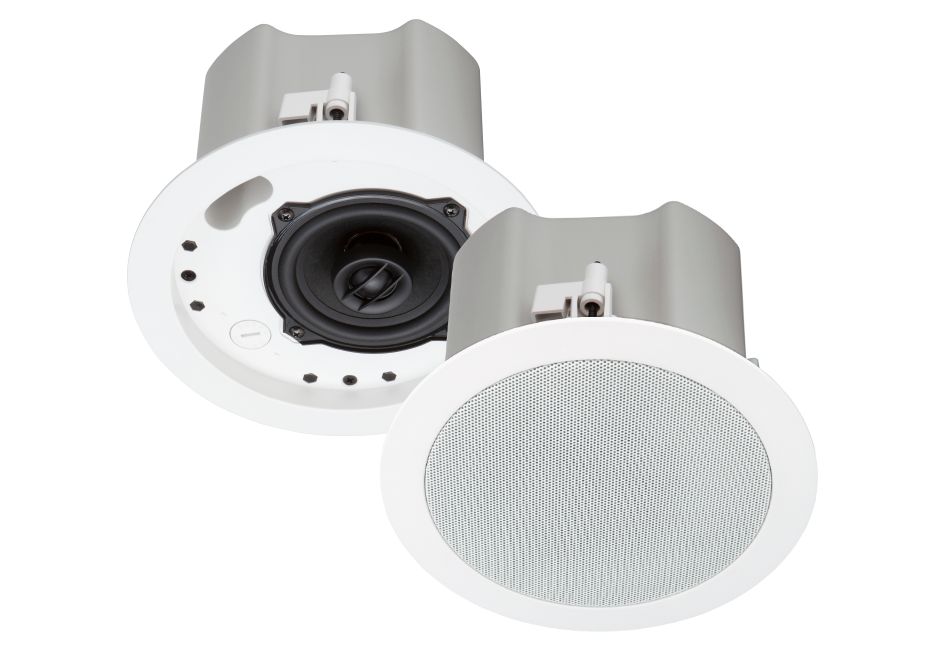

Saros 4 2-Way In-Ceiling Speaker, White Textured, Single (must be ordered in multiples of 2)
This item is noncancelable and nonreturnable.
The Saros Integrator ICI4T model is a 2-way in-ceiling speaker featuring a 4 inch woofer and 3/4 inch dome tweeter. It is designed to enable quick installation and reliable performance in restaurants, retail spaces, convention facilities, airports, and office buildings. A built-in 30 Watt multi-tap transformer allows for use with 70 and 100 Volt distributed speaker systems.
Unitized construction of the speaker enclosure simplifies specification and installation for use in new and existing ceilings. Mounting the speaker is facilitated using toggle clamps integrated into the enclosure. A tile bridge is included to provide proper support when installed in a typical drop-tile ceiling. The tile bridge is adjustable to enable off-center speaker positioning, and can fit through the speaker cutout in blind-mount situations. A rigging point is also provided on the top of the speaker enclosure for securing to the building structure using the optional safety tether kit (SPKA-ST-15 [1]).
An integral metal back can enclosure is employed to meet the requirements of UL® 2043 for installation in an environmental air-handling (plenum) space. The wiring connection is accessible on the top of the enclosure. The built-in cable clamp can accommodate one or two 1/2” or 3/4” flexible conduits. Connecting the wiring is facilitated using a detachable screw terminal block with provisions for easy parallel wiring in a multi-speaker application. Setting the 70/100V transformer tap is performed via a screwdriver-adjustable control located on the front baffle behind the grille.
Saros Integrator ICI4T speakers are available in white only. They are priced individually, but must be ordered in pairs.
| Features & Performance | ||
| Woofer | 4 inch (102 mm) cone, ported | |
| Tweeter | 0.79 inch (20 mm) dome | |
| Impedance | 8 Ohms nominal with transformer set to "8Ω" | |
| Transformer Taps | 3.75W/7.5W/15W/30W at 70V; 7.5W/15W/30W at 100V |
|
| Frequency Response | 100 Hz to 15 kHz (±3 dB) | |
| Frequency Range | 80 Hz to 20 kHz (-10 dB) | |
| Power Handling | 30 Watts program | |
| Sensitivity | 89 dB @ 1W/1m | |
| Coverage | 120° conical (nominal) | |
| Connections | ||
| Input | (1) 4-pin 5 mm detachable terminal block; Speaker input with parallel pass-through; Maximum Wire Size: 12 AWG |
|
| Controls | ||
| Transformer Tap | (1) Screwdriver-adjustable rotary switch on baffle; Used to select 70/100V tap or 8 Ohms (bypass) |
|
| Environmental | ||
| Temperature | 20° to 120° F (-7° to 49° C) | |
| Humidity | 5% to 95% RH (non-condensing) | |
| Construction | ||
| Enclosure | Painted steel, plenum-rated, top mounted dual cable clamp (1/2" or 3/4" flexible conduit compatible) | |
| Baffle | ABS plastic, UL 94V-0 flame rated, white textured | |
| Grille | Perforated metal, white finish, push-on friction fit | |
| Mounting | Flush ceiling mount using 4 integral 2-step toggle clamps; 1.5 in (38 mm) maximum surface thickness; 6.2 in (156 mm) minimum mounting depth (without conduit); 6.8 in (173 mm) diameter recommended cutout; Tile bridge included; (1) rigging point for safety tether (SPKA-ST-15 sold separately) |
|
| Dimensions | ||
| Diameter | 8.11 in (206 mm) not including toggles | |
| Depth | 5.87 in (149 mm) | |
| Weight | ||
| 4.9 lb (2.3 kg) | ||
Please contact us for any questions regarding this product.
