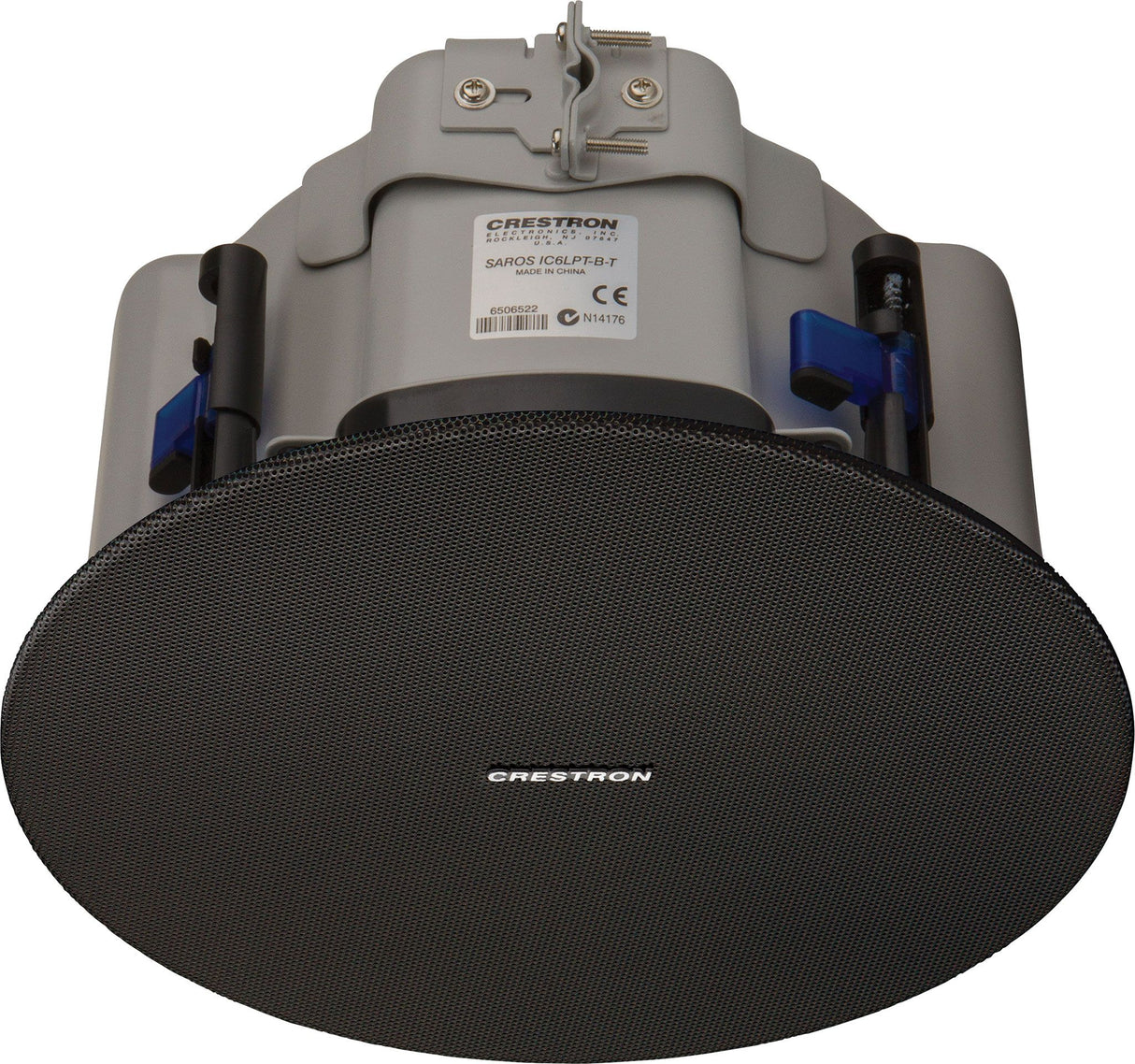

Saros Low-Profile 8? 2-Way In-Ceiling Speaker, Black Textured, Single (must be ordered in multiples
This item is nonreturnable and noncanceable.

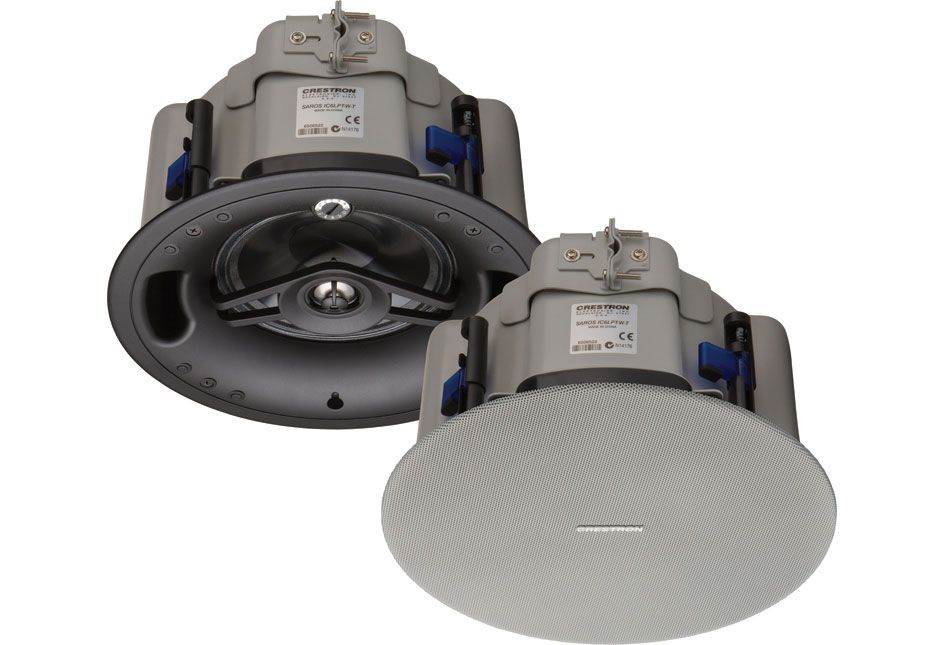

The Saros IC6LPT series are 2-way in-ceiling speakers that feature a 6-1/2 inch woofer and wide-dispersion, horn-loaded 1 inch dome tweeter. Their low-profile enclosures allow for installation in constricted ceiling spaces as shallow as 5-1/8 inches (130 mm). A built-in 60 Watt multi-tap transformer allows for use with 70 and 100 Volt distributed speaker systems. Power handling at 8 Ohms is 50 Watts (program), with a frequency response from 65 Hz to 20 kHz (±3 dB).
Saros IC6LPT series speakers are smartly designed for quick and easy installation and years of reliable performance. They feature a “zero-bezel” frameless grille that achieves an unobtrusive and contemporary appearance well-suited for use in restaurants and night clubs, retail spaces, houses of worship, convention facilities, universities, and office buildings. Installing the grille requires no hardware or tools, utilizing powerful magnets to hold it in place. A safety tether is included to prevent the grille from ever falling from the ceiling.
Specifications:
| Features & Performance | ||
| Woofer | 6.5 inch (165 mm) polypropylene w/ring mode decoupled cloth surround & steel basket | |
| Tweeter | 0.98 inch (25 mm) titanium dome, horn loaded | |
| Crossover Frequency | 2.5 kHz | |
| Impedance | 8 Ohms nominal with transformer set to "8Ω" | |
| Transformer Taps | 3.75W/7.5W/15W/30W/60W at 70V; 7.5W/15W/30W/60W at 100V |
|
| Frequency Response | 65 Hz to 20 kHz (±3 dB) | |
| Frequency Range | 55 Hz to 20 kHz (-10 dB) | |
| Power Handling | 50 Watts program (8 Ohms) | |
| Sensitivity | 88 dB @ 1W/1m | |
| Coverage | 95° conical (nominal) | |
| Connections | ||
| Input | (1) 4-pin 5 mm detachable terminal block with screw-down flanges; Speaker input with parallel pass-thru; Maximum Wire Size: 12 AWG (4 mm²) |
|
| Controls | ||
| Transformer Tap | (1) Recessed screwdriver-adjustable rotary switch on baffle; Used to select 70/100V tap or 8 Ohms (bypass) |
|
| Environmental | ||
| Temperature | -2° to 120° F (-19° to 49° C) | |
| Humidity | 5% to 95% RH (non-condensing) | |
| Construction | ||
| Enclosure | Zinc-plated steel, plenum-rated, side-entry cable clamp | |
| Baffle | ABS UL 94V-0 plastic | |
| Grille | Steel with white or black textured finish, paintable, magnetically-held “zero-bezel” frameless design, safety tether included | |
| Mounting | Flush ceiling mount using 4 integral 2-step swiveling dogs, 2.4 in (61 mm) maximum surface thickness, 5.2 in (130 mm) minimum mounting depth, 9.7 in (245 mm) diameter recommended cutout, tile bridge included, (2) rigging points for safety tether (SPKA-ST-15 sold separately) | |
| Dimensions | ||
| Diameter | 10.64 in (270 mm) not including mounting dogs | |
| Depth | 5.30 in (135 mm) | |
| Weight | ||
| 8.2 lb (3.7 kg) | ||
| Compliance | ||
| UL Listed for US & Canada, CE, FCC Part 15 Class B, UL 1480, UL 1480A, UL 2043 [2] | ||
Please contact us for any questions regarding this product.
