Saros 6.5? 2-Way In-Ceiling Speaker, Black Textured, Single (must be ordered in multiples of 2)
This item is not returnable and noncancelable.

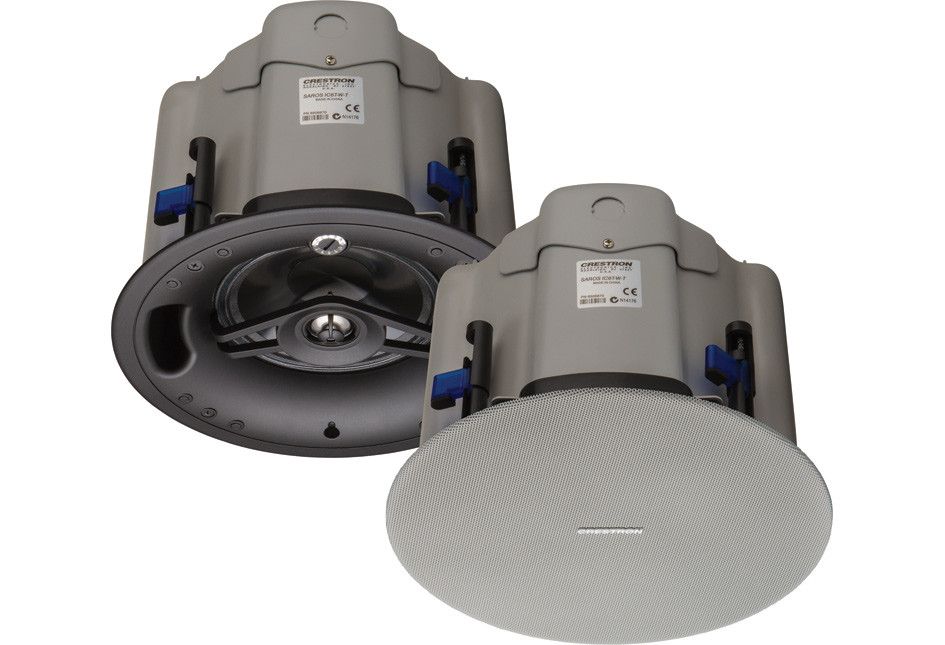

The Saros IC6T model is a 2-way in-ceiling speaker featuring a 6.50 in. (165.1 mm) woofer and wide-dispersion, horn-loaded 1 in. (25.4 mm) dome tweeter. A built-in 60 W multi-tap transformer allows for use with 70V and 100V distributed speaker systems. Power handling at 8 Ohms is an impressive 125 W (program), with a wide frequency response from
50 Hz to 20 kHz (±3 dB).
The Saros IC6T is smartly designed for quick and easy installation and years of reliable performance. Its zero-bezel frameless grille achieves an unobtrusive and contemporary appearance well-suited for use in restaurants and night clubs, retail spaces, houses of worship, convention facilities, universities, and office buildings. Installing the grille requires no hardware or tools, utilizing powerful magnets to hold it in place. A safety tether is included to firmly secure the grille. Grilles can also be painted to blend with the ceiling surface.
| Features & Performance | |
| Woofer | 6.5 in. (165 mm) polypropylene w/ring mode decoupled cloth surround & steel basket |
| Tweeter | 0.98 in. (25 mm) titanium dome, horn loaded |
| Crossover Frequency | 2.5 kHz |
| Impedance | 8 Ohms nominal with transformer set to 8Ω |
| Transformer Taps | 3.75 W/7.5 W/15 W/30 W/60 W at 70V; 7.5 W/15 W/30 W/60 W at 100V |
| Frequency Response | 50 Hz to 20 kHz (±3 dB) |
| Frequency Range | 40 Hz to 20 kHz (-10 dB) |
| Power Handling | 125 W program (8 Ohms) |
| Sensitivity | 88.5 dB @ 1W/1m |
| Coverage | 100° conical (nominal) |
| Connections | |
| Input | (1) 4-pin 5mm detachable terminal block with screw-down flanges; Speaker input with parallel pass-thru; Maximum Wire Size: 12 AWG |
| Controls | |
| Transformer Tap | (1) Recessed screwdriver-adjustable rotary switch on baffle; Used to select 70V/100V tap or 8 Ohms (bypass) |
| Environmental | |
| Temperature | -2° to 120°F (-19° to 49°C) |
| Humidity | 5% to 95% RH (non-condensing) |
| Construction | |
| Enclosure | Zinc-plated steel, plenum-rated, 0.5 in. (12.7 mm) or 0.75 in. (19.05 mm) conduit knockout top and side, (1) cable clamp included |
| Baffle | Glass fiber reinforced ABS plastic, UL® 94V-0 flame rated |
| Grille | Steel with white textured finish, paintable, magnetically-held zero-bezel frameless design, safety tether included |
| Mounting | Flush ceiling mount using 4 integral 2-step toggle clamps, 2.4 in. (61 mm) maximum surface thickness, 8.1 in. (206 mm) minimum mounting depth, 9.68 in. (246 mm) diameter recommended cutout, tile bridge included, (2) rigging points for safety tether (SPKA-ST-15 sold separately) |
| Dimensions | |
| Diameter | 10.57 in. (269 mm) not including toggles |
| Depth | 8.31 in. (211 mm) |
| Weight | |
|
10.38 lb (4.7 kg) |
|
