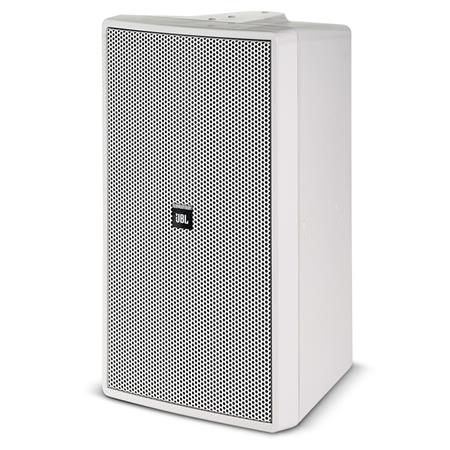

8" 2-WAY MONITOR SPEAKER-WHITE, Each

Frequency Range (-10 dB)

37 Hz -18 kHz

Frequency Response (+/- 3 dB)

43 Hz - 15 kHz

100 Hr Power Capacity

300 Watts Continuous Program Power
150 Watts Continuous Pink Noise

Maximum SPL @ 1m

Short-Term: 118 dB; Long-Term: 112 dB

Nominal Sensitivity

90 dB, 1W @ 1 m (3.3 ft)

Nominal Coverage Angle

110Deg. H x 85Deg. V, rotatable

Directivity Factor (Q)

6.7, averaged 500 Hz to 16 kHz

Directivity Index (DI)

8.3 dB, averaged 500 Hz to 16 kHz

Nominal Impedance

8 ohms

Minimum Impedance

6.3 ohms @ 230 Hz 3.3 ohms @ 4.1 kHz

Crossover Type

3rd order High Pass, 2nd order Low Pass with impedance compensation, 2.5 kHz crossover frequency

Transformer Taps

70V: 110W, 55W, 28W & 14W
100V: 110W, 55W & 28W
Thru Position: 8 ohm nominal

Low Frequency

200 mm (8 in) Kevlar cone with pure butyl rubber surround, 50 mm (2 in) voice coil on fiberglass former

High Frequency

25 mm (1 in) compression driver, pure titanium diaphragm with patented JBL diamond surround

Enclosure Material

High impact polystyrene

Grille

Thermoset composite coated steel

Overload Protection

Full-range power limiting to protect network and transducers. Serviceable internal fuse to protect during extreme overload conditions

Environmental

IEC 529 IP-X4 splashproof rating. Exceeds MilSpec 810 for humidity, salt spray, temperature & UV. Passes Mil-Std-202F for salt spray

Termination

Screw-down terminal strip, zinc plated copper base, nickel plated metal screws/washers. Accepts up to 9 mm outside 4 mm inside open lug (#6, #8 or #10 lug), plus bare wire (up to 12 AWG/2.5 mm2)

Dimensions (H x W x D)

20.5 x 12 x 10.9" (520 x 306 x 277mm)

Weight

26.8 lbs (12.2kg)
